PTFE Coated Fiberglass Adhesive Tape

  • PTFE adhesive widen tape with release paper
  • PTFE adhesive widen tape with release paper
PTFE adhesive widen tape with release paperPTFE adhesive widen tape with release paper

PTFE adhesive widen tape with release paper

  • Brand: WELLFLON
  • Materials: PTFE Fiberglass Fabric
  • Features:100% Nonstick, High Temp Resistant
  • Temp Resistance: -70°C to +260°C
  • Product description: The PTFE coated fiberglass adhesive tape is Silicone adhesive coated on PTFE fabric (or pure PTFE membrane) which has been sodium treated on single side.
  • INQUIRY

PTFE adhesive widen tape with release paper

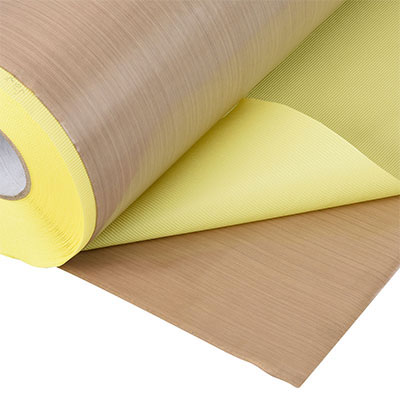

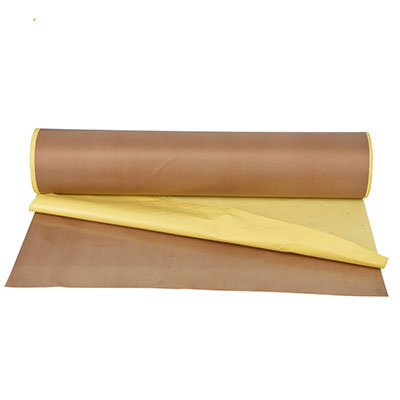

The PTFE coated fiberglass adhesive tape is Silicone adhesive coated on PTFE fabric (or pure PTFE membrane) which has been sodium treated on single side. PTFE coated fiberglass adhesive tape has a smooth surface, good anti-adhesion, chemical and high temperature resistance and excellent insulation properties. It is widely used in packaging, thermoplastic, composite, sealing and sealing, electrical and electronic industries. The fabric-reinforced PTFE tape is more resistant to high-strength and can be used repeatedly and easily replaced.

Our company uses imported raw materials to produce a variety of PTFE coated fiberglass adhesive tape of different specifications.


Features of PTFE adhesive widen tape with release paper:

1. Temperature resistance from -70°C to +300°C, with climate resistance and aging resistance.

2. Superior non-stick surface, easy to clean.

3. Excellent chemical resistance. Be Resistant to strong acid, strong alkali, aqua regia and various organic solvents.

4. Non-toxic, and can resist almost all pharmaceutical products

5. High insulating property, anti-UV, anti-static.

6. Fire Proof

7. Easy to apply, long working life.


Applications of PTFE adhesive widen tape with release paper:

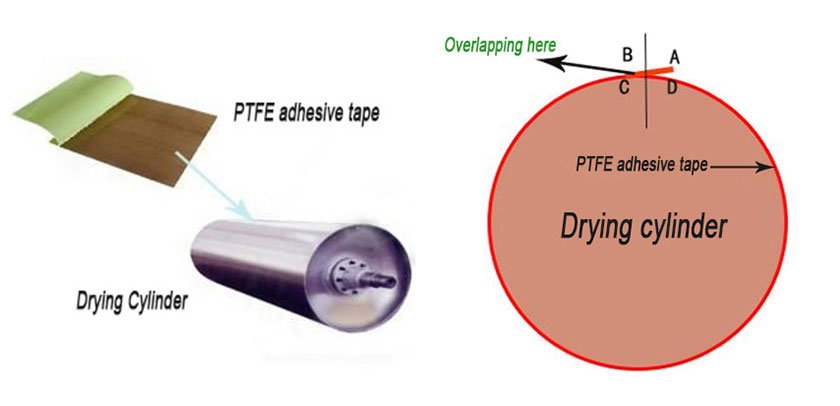

1. Coating on all kinds of high temperature rollers, heating plates, stripping pieces.

2. Heat sealing for foods, medicines and plastic package.

3. Can be used repeatedly and easy to be replaced as liners of chutes, hoppers, and aero moulds, also on the sizing machine rollers and demoulding industry.

4. Adapted for the surface treatment of non-adhesive, chemical resistance and temperature resistance.

5. Used in packing, thermoplastic, composite, sealing heat binding, electrical and electronic industries.


Physical Characteristic of PTFE adhesive widen tape with release paper:

Characteristic

Unit

Value

Thickness

mm

.13

.18

.20

.25

inch

.005

.007

.008

.01

Width (Roll)

mm

13

19

25

50

inch

.50

.75

1

2

Length (Roll)

meter

10

33

yard

10.90

36

Color

--

Beige

Pack

--

Roll

Adhesive

--

Silicone

Heat Sealer

--

Good

Temperature Range

60~260

Peeling Strength

(Stainless steel plate)

25

N/10mm

3.18

250, 10minute

3.72

Tensile Strength

kg/cm2

283

Elongation

%

100

Breakdown Voltage

V

10,000

Friction Coefficient

--

0.6

Water Absorption

%

0.00

Oil and Chemical Resistance

--

Good

Flame Resistance

--

Good (UL510)
