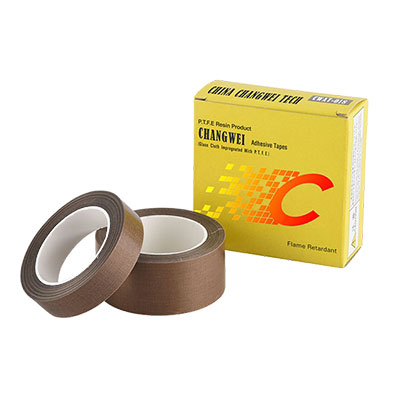

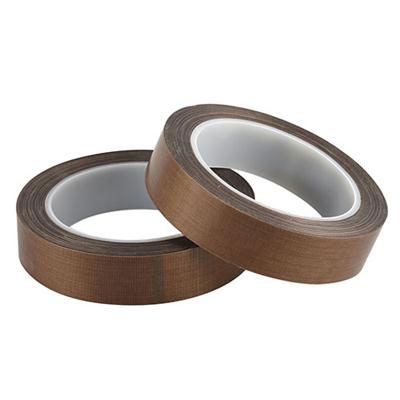

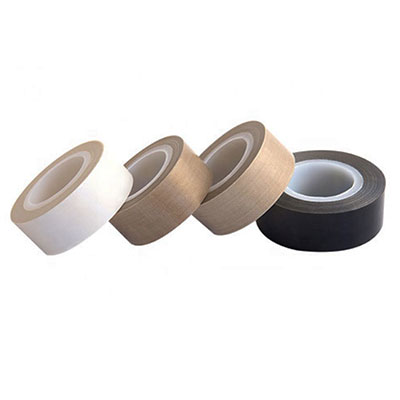

PTFE coated fiberglass adhesive tape
The PTFE coated fiberglass adhesive tape is Silicone adhesive coated on PTFE fabric (or pure PTFE membrane) which has been sodium treated on single side. PTFE coated fiberglass adhesive tape has a smooth surface, good anti-adhesion, chemical and high temperature resistance and excellent insulation properties. It is widely used in packaging, thermoplastic, composite, sealing and sealing, electrical and electronic industries. The fabric-reinforced PTFE tape is more resistant to high-strength and can be used repeatedly and easily replaced.
Our company uses imported raw materials to produce a variety of PTFE coated fiberglass adhesive tape of different specifications.


Features of PTFE coated fiberglass adhesive tape:
1. Temperature resistance from -70°C to +300°C, with climate resistance and aging resistance.
2. Superior non-stick surface, easy to clean.
3. Excellent chemical resistance. Be Resistant to strong acid, strong alkali, aqua regia and various organic solvents.
4. Non-toxic, and can resist almost all pharmaceutical products
5. High insulating property, anti-UV, anti-static.
6. Fire Proof
7. Easy to apply, long working life.


Applications of PTFE coated fiberglass adhesive tape:
1. Coating on all kinds of high temperature rollers, heating plates, stripping pieces.
2. Heat sealing for foods, medicines and plastic package.
3. Can be used repeatedly and easy to be replaced as liners of chutes, hoppers, and aero moulds, also on the sizing machine rollers and demoulding industry.
4. Adapted for the surface treatment of non-adhesive, chemical resistance and temperature resistance.
5. Used in packing, thermoplastic, composite, sealing heat binding, electrical and electronic industries.
Physical Characteristic of PTFE coated fiberglass adhesive tape:


						Characteristic

						Unit

						Value

						Thickness

						mm

						.13

						.18

						.20

						.25

						inch

						.005

						.007

						.008

						.01

						Width (Roll)

						mm

						13

						19

						25

						50

						inch

						.50

						.75

						1

						2

						Length (Roll)

						meter

						10

						33

						yard

						10.90

						36

						Color

						--

						Beige

						Pack

						--

						Roll

						Adhesive

						--

						Silicone

						Heat Sealer

						--

						Good

						Temperature Range

						℃

						-60~+260

						Peeling Strength

						(Stainless steel plate)

						25℃

						N/10mm

						3.18

						250℃, 10minute

						3.72

						Tensile Strength

						kg/cm2

						283

						Elongation

						%

						100

						Breakdown Voltage

						V

						10,000

						Friction Coefficient

						--

						0.6

						Water Absorption

						%

						0.00

						Oil and Chemical Resistance

						--

						Good

						Flame Resistance

						--

						Good (UL510)
