Silicone Coated Fiberglass Fabric

  • Silicone Glass Fabric
  • Silicone Glass Fabric
  • Silicone Glass Fabric
Silicone Glass FabricSilicone Glass FabricSilicone Glass Fabric

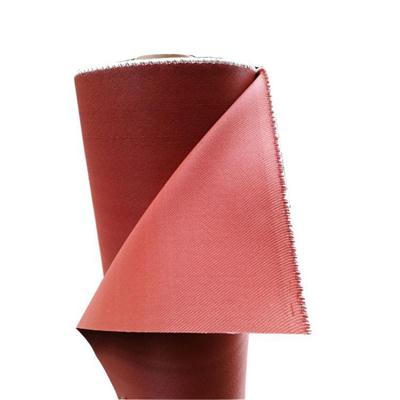

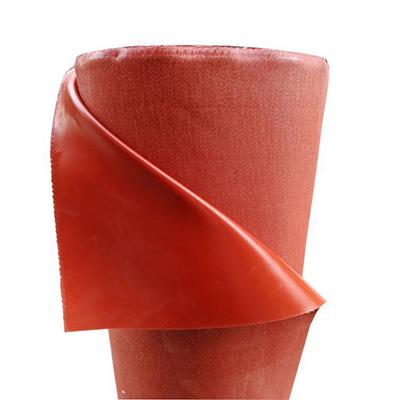

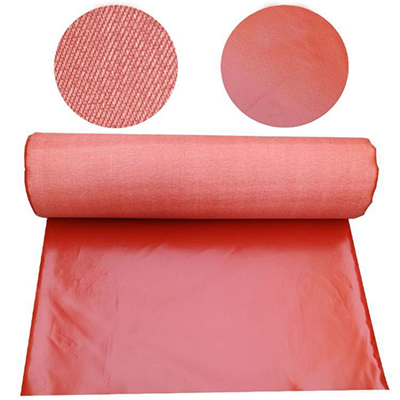

Silicone Glass Fabric

  • Brand: WELLFLON
  • Materials: Silicone, Fiberglass
  • Features:100% Nonstick, High Temp Resistant
  • Temp Resistance: -70°C to +230°C
  • Product description: Silicone Glass Fabric is one kind of high performance and multi-purpose compound material which is made of silicone emulsion coated fiberglass with unique technology.
  • INQUIRY

Silicone Glass Fabric

Silicone Fiberglass fabric is one kind of high performance and multi-purpose compound material which is made of silicone emulsion coated fiberglass with unique technology.


Features Of Silicone Glass Fabric:

1. Heat and cold resistance, good performance in heat preservation.

2. High strength, soft and flexible.

3. Chemical resistance, oil and water proof.

4.Heat resistance, weather resistance, resistant to ozone, oxygen, light and so on.

5. High insulation performance, dielectric constant 3-3.2, breakdown voltage 20~50KV/MM.

Applications Of Silicone Glass Fabric:

1. Electric Insulation: Silicone rubber coated fiberglass cloth features high grade of electric insulation and bear a load of high voltage. It fits for making products like insulation cloth and sleeves etc.

2. Non-metallic compensator: used as pipeline flexible coupling, non-metallic compensator helps to avoid damage caused by heat expansion and cold contraction. This material specially fit for use in industries of petroleum, chemical engineering, cement, iron and steel and energy sources due to its special features of temperature resistance, anti-corrosion, anti-aging, and good elasticity and toughness.

3. Anti-Corrosion function: It is good to be used as inner and outer anti-corrosion layer featuring excellent corrosion, resistance, temperature resistance and high strength. It proves to be an ideal anti-corrosion material.

4. Others: Apart from above application, it can also be used as sealing material, temperature resistance and anti-corrosion conveyor belt and packaging material.

Main Specifications of Silicone Glass Fabric:

Item

Color

Thickness

Max Width

Weight

Breakdown Voltage

Temperature

CWF-S0280

Gray/Black/Red

0.23mm

1800mm

280±5g/m2

20~50 KV/mm

-70~260 ℃

CWF-S0510

Gray/Black/Red

0.43mm

1800mm

510±5 g/m 2

20~50 KV/mm

-70~260 ℃

CWF-S0570

Gray/Black/Red

0.45mm

1800mm

570±5 g/m 2

20~50 KV/mm

-70~260 ℃

CWF-S0760

Gray/Black/Red

0.60mm

1800mm

760±5 g/m 2

20~50 KV/mm

-70~260 ℃

CWF-S0800

Gray/Black/Red

0.62mm

1800mm

800±5 g/m 2

20~50 KV/mm

-70~260 ℃

CWF-S0860

Gray/Black/Red

0.65mm

1800mm

860±5 g/m 2

20~50 KV/mm

-70~260 ℃

CWF-S1080

Gray/Black/Red

0.85mm

1800mm

1080±5g/m 2

20~50 KV/mm

-70~260 ℃

CWF-S1400

Gray/Black/Red

1.00mm

1800mm

1400±5 g/m 2

20~50 KV/mm

-70~260 ℃

CWF-S1800

Gray/Black/Red

1.00mm

1800mm

1800±5 g/m 2

20~50 KV/mm

-70~260 ℃

CWF-S2450

Gray/Black/Red

1.50mm

1800mm

2450±5 g/m 2

20~50 KV/mm

-70~260 ℃
