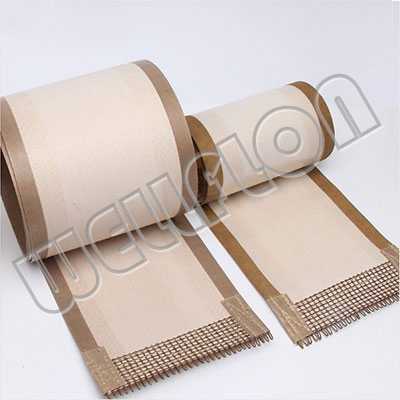

PTFE Coated Fiberglass Conveyor Belt

  • PTFE Coated Fiberglass Conveyor Belt
  • PTFE Coated Fiberglass Conveyor Belt
  • PTFE Coated Fiberglass Conveyor Belt
PTFE Coated Fiberglass Conveyor BeltPTFE Coated Fiberglass Conveyor BeltPTFE Coated Fiberglass Conveyor Belt

PTFE Coated Fiberglass Conveyor Belt

  • Brand: WELLFLON
  • Materials: PTFE,Fiberglass Fabric,Mesh Fabric
  • Features:100% Nonstick, High Temp Resistant
  • Temp Resistance: -70°C to +260°C
  • Product description: The PTFE coated fiberglass conveyor belt is one kind of high performance and multipurpose composite material, which is high quality glass fiber coated with the PTFE emulsion.
  • INQUIRY

PTFE Coated Fiberglass Conveyor Belt

The PTFE coated fiberglass conveyor belt is one kind of high performance and multipurpose composite material, which is high quality glass fiber coated with the PTFE emulsion.


Features Of PTFE Coated Fiberglass Conveyor Belt:

1. Temperature resistance from -70C to +260°C.

2. Non-stick surface, easy to clean.

3. Chemical resistance. Be resistant to various organic solvent.

4. Good stability in size, high strength, good mechanical performance.

5. Bending fatigue resistance, and can be used on smaller wheel.

6. Non-toxic, and can resist almost all pharmaceutical products.

7. Fire Proof.

8. Air permeability of the conveyor belt can reduce the heat-consuming, and improve the drying efficiency.


Applications Of PTFE Coated Fiberglass Conveyor Belt:

(Any industry which need conveyor belts in heat air flow or heat processing)

1. Textile and dyeing: drying for textile printing, dyeing, shrinking, non-woven fabric, and in industry oven.

2. The loose-dryer, offset, UV curing machine, paper oil drying, UV drying, plastic printing drying.

3. High-frequency wave drying, microwave drying, food refrigeration and defrost, baking, packaging heat shrinking.


Physical Characteristic For The Fabric Of PTFE Coated Fiberglass Conveyor Belt:

Item No.

Color

Thickness (mm)

Weight of Fiberglass(g/m2)±3%

Total Weight (g/m2) ±5%

Tear Strength (N/5cm) ±5%

Temperature Resistance

Warp

Weft

CWF-0070

black/white/brown

0.065

48 70 500 460 -70 ~+280℃
CWF-0150
black/white/brown
0.07
48 150 650 550 -70 ~+280℃
CWF-0165
black/white/brown
0.08 48 165 700 600 -70 ~+280℃
CWF-0130
black/white/brown
0.095
105 130 820 800 -70 ~+280℃
CWF-0220
black/white/brown
0.105
105 220 900 750 -70 ~+280℃
CWF-0230
black/white/brown
0.115
105 230 1150 1000 -70 ~+280℃
CWF-0250
black/white/brown
0.125
105 250 1200 1100 -70 ~+280℃
CWF-0300
black/white/brown
0.14
105 300 1350 1250 -70 ~+280℃
CWF-0350
black/white/brown
0.17
165 350 1750 1550 -70 ~+280℃
CWF-0360
black/white/brown
0.18
165 360 1800 1650 -70 ~+280℃
CWF-0275 black/white/brown
0.2
205 275 2000 1800 -70 ~+280℃
CWF-0440
black/white/brown
0.22
205 440 2400 1650 -70 ~+280℃
CWF-0490
black/white/brown
0.23
205 490 2200 1750 -70 ~+280℃
CWF-0500
black/white/brown
0.24
205 500 2200 1850 -70 ~+280℃
CWF-0500
black/white/brown
0.25
205 500 2500 2000 -70 ~+280℃
CWF-0620
black/white/brown
0.28
293 620 2500 1800 -70 ~+280℃
CWF-0385
black/white/brown
0.31
283 385 1900 1400 -70 ~+280℃
CWF-0620
black/white/brown
0.32
255 620 3000 2100 -70 ~+280℃
CWF-0690
black/white/brown
0.35
333 690 3200 2200 -70 ~+280℃
CWF-0770
black/white/brown
0.39
333 770 3200 2100 -70 ~+280℃
CWF-0540
black/white/brown
0.43
405 540 3500 2400 -70 ~+280℃
CWF-1000
black/white/brown
0.53
538 1000 4200 3500 -70 ~+280℃
CWF-1180
black/white/brown
0.63 578 1180 4500 3800 -70 ~+280℃
CWF-1550
black/white/brown
0.78 768 1550 5500 4000 -70 ~+280℃
CWF-1600
black/white/brown
0.9 865 1600 6500 5500 -70 ~+280℃
CWF-1250
black/white/brown
0.98 852 1250 6000 5000 -70 ~+280℃
